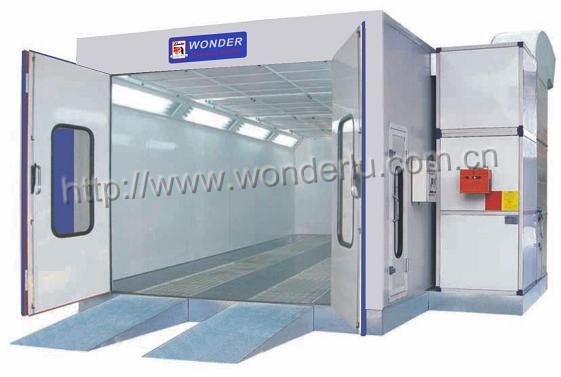

R2

DATE:2009-11-18 14:23:24 WONDER

Technical Parameters:


  External size: 7.0mx5.3mx3.5m Internal size: 6.9mx3.9mx2.7m
  Entrance Width: 3.0m Entrance Height: 2.7m
  Fan capacity: 24000m/h Air velocity: 0.25-0.35s/m
  Power: 9.5kw
Suitable Automobile Type: Car


Description:


  • Wall panel: sandwich style, g=50mm, polystyrene. rock wool available as required.
  • Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
  • Door: 3 pcs of front door without aluminum side cover. 1pc of emergency door with pressure lock.
  • Ramp: 2 pcs of vein board.
  • One 7.5kw intake fan.
  • 4m straight exhaust ducts, one 90° bend, and one 60° bend.4m straight chimney and 2 small bends.
  • Spraying/baking transition damper, automatically air controlled.
  • Heat exchanger: stainless steel. riello g20 burner.
  • Roof filter: 4 pcs of filter, mounted above support frame, which is made of steel and powder coated.
  • --2 pcs of floor filter and 1 pcs of outlet filter.
  • Upper light: 10 sets, 4*40w per set.
  • Control box: components made in china, overload, overheat, phase-lacking protection, straight driven motor.
  • Automatically stop when preset time is up.
  • Constant temperature spraying.
