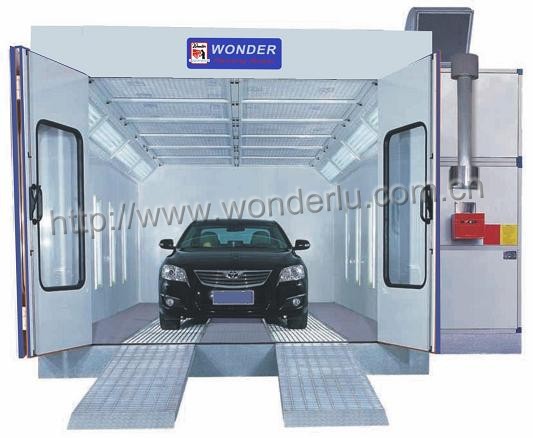

Technical Parameters:

	External size: 7.0mx5.3mx3.5m	Internal size: 6.9mx3.9mx2.7m
	Entrance Width: 3.0m	Entrance Height: 2.7m
	Fan capacity: 24000m/h	Air velocity : 0.25-0.35s/m
	Power : 16kw	Suitable Automobile Type: Car

Description:

• Wall panel: sandwich style, g=50mm, polystyrene. rock wool available as required.
• Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
• Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
• Ramp: 2 pcs of vein board.
• One 7.5kw intake fan and one 5.5kw exhaust fan.
• 4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
• Spraying/baking transition damper, automatically air controlled.
• Heat exchanger: stainless steel. riello g20 burner.
• Roof filter: 4 pcs of filter, mounted above support frame, which is made of steel and powder coated.
• 2 pcs of floor filter and 1 pcs of outlet filter.
• Upper light: 10 sets, 4*40w per set. side lights: 8sets,2*40w.
• Control box: components is import, overload, overheat, phase-lacking protection, straight driven motor.
• Automatically stop when preset time is up.
• Constant temperature spraying.
• Environmental filter: the equipment can be adopted M style activated carbon or drawer style activated carbon.
