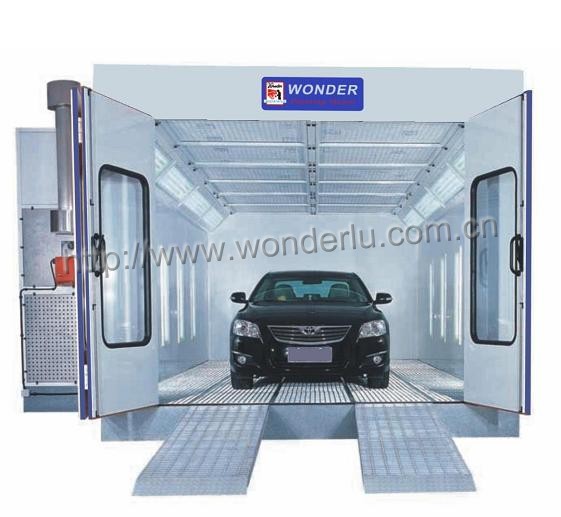

Technical Parameters:

	External size: 7.0mx5.6mx3.5m	Internal size: 6.9mx3.9mx2.7m
	Entrance Width: 3.0m	Entrance Height: 2.7m
	Fan capacity: 25000m/h	Air velocity: 0.3-0.5s/m
	Air ventilation: 332 times/h	Max Drying Temperature: 60℃-80℃
	Oil consumption: (L/unit) 6-8	Power: 25kw
	Suitable Automobile Type: Car

Description:

• Wall panel: sandwich style, g=50mm, polystyrene，rock wool available as required.
• Basement: steel structure, full grids，ramp: 2 pcs of grids.
• Door: 3 pcs of front door without aluminum side cover. 1pc of emergency door with pressure lock.
• One 11kw intake fan and one 11kw exhaust fan.
• 4m straight exhaust ducts, one 90° bend, and one 60° bend.4m straight chimney and 2 small bends.
• Electrical VCD. one pressure meter.
• Spraying/baking transition damper, automatically air controlled.
• Fire protection equipment: 1set, the inductor control closed; energy-saving equipment: 1set.
• -Heat exchanger: stainless steel. riello/ rg5s burner.
• Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
• 5 pcs of floor filter and 2 pcs of outlet filter.
• Upper light: 10 sets, 4*40w per set. side lights: 8sets, 4*40w.
• Control box: imported components, overload, overheat, phase-lacking, phase-locking protection, engine start.
• Automatically stop when preset time is up.
• Constant temperature spraying.
