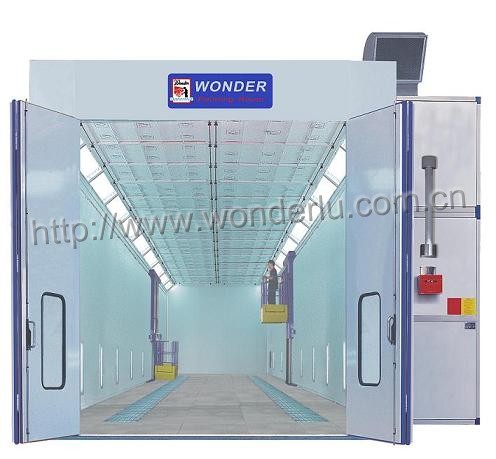

Technical Parameters:

	External size: 15.2mx6.7mx5.0m	Internal size: 15.0mx5.0mx4.4m
	Entrance Width: 4.0m	Entrance Height: 4.0m
	Fan capacity: 72000m/h	Air velocity 0.3-0.5s/m
	Power: 50kw	Suitable Automobile Type: Bus

Description:

• Wall panel: sandwich style, g=75mm, polystyrene, rock wool available as required.
• Basement: concrete structure made by customers, 2 rows of grids, 3d lifts as optional.
• Door: 4 pcs of front door without aluminum side cover. 2 pcs of emergency door with pressure lock.
• Two 11kw intake fans and two 11kw exhaust fans.
• Two sets of exhaust/intake ducts, 5m straight, one 90° bend, and one 60° bend each. two sets of chimney, 5m straight and 2 small bends.
• 2sets of manual VCD exhaust/intake dampers, electrical VCD as optional.
• Spraying/baking transition damper, automatically air controlled.
• Heat exchanger: stainless steel. 2units of RIELLO RG5S burners.
• Roof filter: 16 pcs of filter, mounted above support frame, which is made of steel and powder coated.
• 2 pcs of floor filter and 2 pcs of outlet filter.
• Upper light: 20 sets, 4*40w per set. side lights: 16sets, 4*40w.
• Control box: imported components, overload, overheat, phase-lacking, phase-locking protection, engine start.
• Automatically stop when preset time is up.
• Constant temperature spraying.；
• Environmental filter :the equipment can be adopted m style activated carbon or drawer style activated carbon.
