Technical Parameters:

	Capacity: 2500Kg	Air: 6~8kg/cm
	Electricity power: 380V/50Hz	Power: 2.2Kw

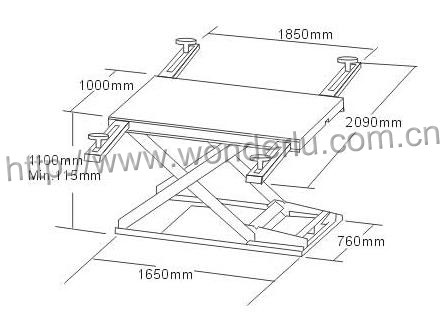

	Lifting height: 1100mm

Description:

• This lift is especially used in painting and repairing devices in preparation area and spray booths where working height needs to be adjusted.
• Personnel can adjust the vehicle's height by lifting this lift according to different requirements, which decreases working intension and improves working effect.
• Parallel connection between two oil cylinder, no synchronization problem.
• Arms are locked by pin. Arms' angle, length and height can be adjusted to apply to different vehicles.
• Its thin structure and initial height of 115mm makes it no need to be installed under the ground. It applies to pans of different vehicles.
• The bottom frame is not fixed and the lift can be moved easily, which especially applies to fast repair and upstairs repair.
• Pneumatic mechanical rack lock safety system makes it safe and reliable.
